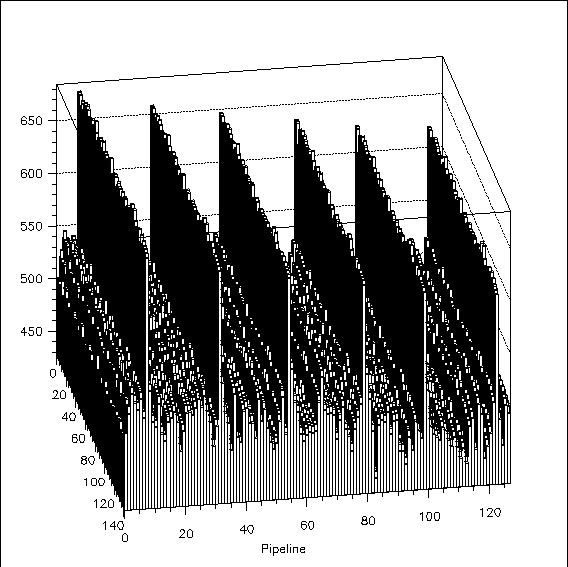

The picture shows the mean
analog output sampled for every channel and for every pipeline location.
6 channels were connected to a 1MIP test signal. Channels 0 to 2 and 125
to 127 do not contain valid data because in this set up the Helix128-2.1
was used and the bug that causes DataValid to jitter with respect to analag
data was not fixed yet.
You may get the complete data to look at features you are interested
in here.
If you have questions or comments, please contact Ulrich
Trunk.
