Pulse shape vs dose

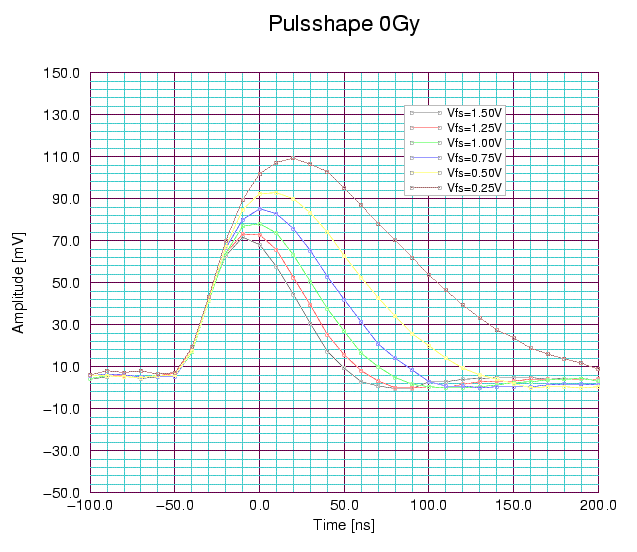

	Ipre = 200µA Isha = 100µA Ibuf = 100µA Icomp= 50µA Ipipe= 40µA Isf = 100µA Idrv = 90µA Vfp = +0.2V Vcomp= -2.0V Vfs = +1.5..+0.25V Vd = -790mV Vdcl = +960mV Voffs= -650mV
The test pulse injection had a bug yielding the undershoot

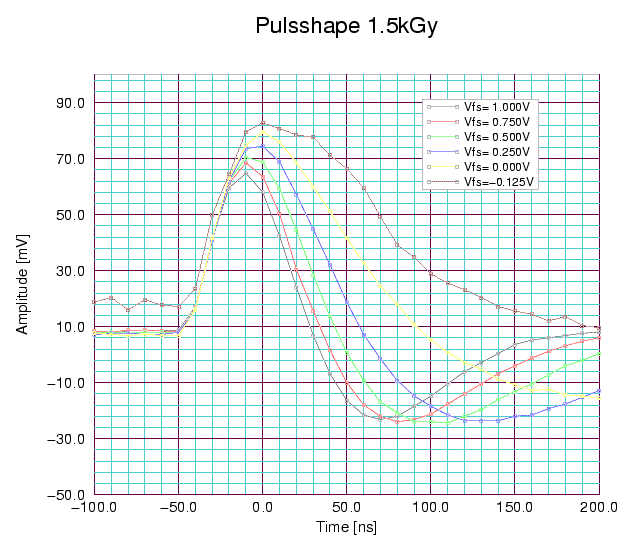

	Ipre = 200µA Isha = 100µA Ibuf = 100µA Icomp= 50µA Ipipe= 40µA Isf = 100µA Idrv = 90µA Vfp = +0.2V Vcomp= -2.0V Vfs = +1.5..-0.125V Vd = -933mV Vdcl = +1.53V Voffs= -353mV
The test pulse injection had a bug yielding the undershoot

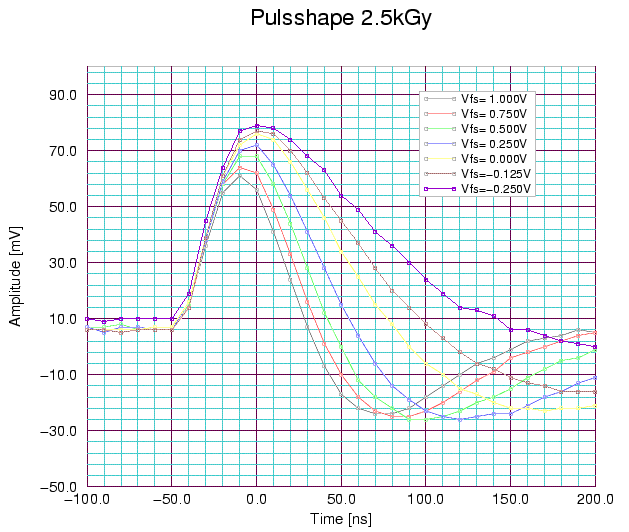

	Ipre = 200µA Isha = 100µA Ibuf = 100µA Icomp= 50µA Ipipe= 30µA Isf = 100µA Idrv = 90µA Vfp = +0.2V Vcomp= -2.0V Vfs = +1.5..-0.125V Vd = -1.008V Vdcl = +1.22V Voffs= -243mV

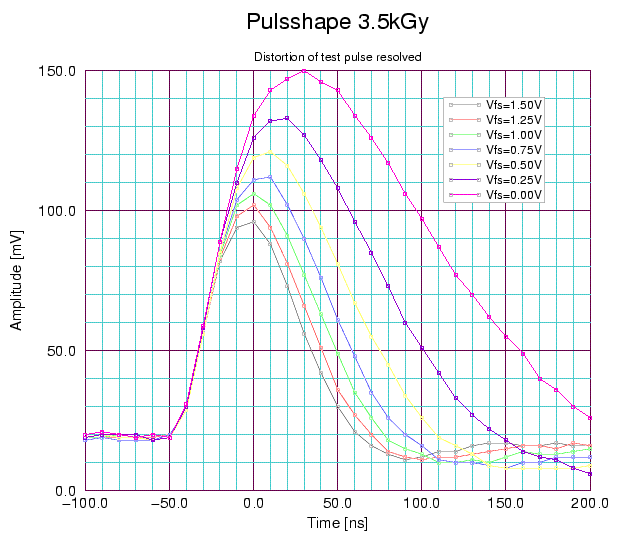

The test pulse injection bug was detected and removed and the undershoot was gone.
	Ipre = 200µA Isha = 100µA Ibuf = 100µA Icomp= 50µA Ipipe= 30µA Isf = 100µA Idrv = 90µA Vfp = +0.2V Vcomp= -2.0V Vfs = +1.5..-0.125V Vd = -1.072V Vdcl = +1.75V Voffs= -102mV
