Measured pulseshape of BeetleFE 1.0 Set 1 (pmos)

The two plots shows the measured pulseshape of the BeetleFE 1.0 - Set 1.

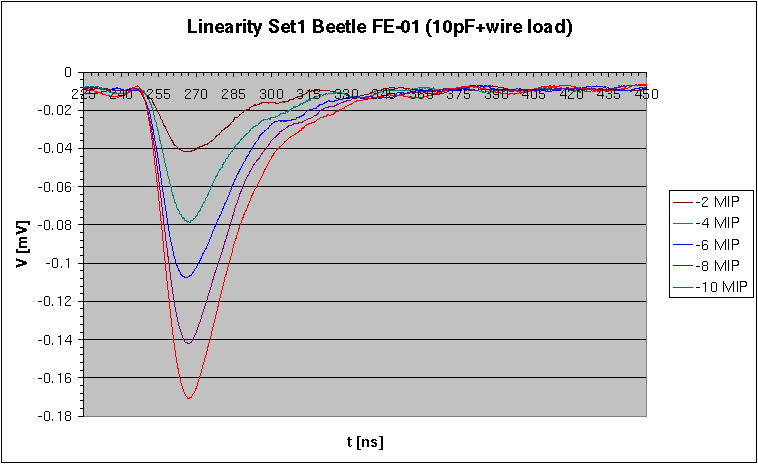

neg. Pulseshape

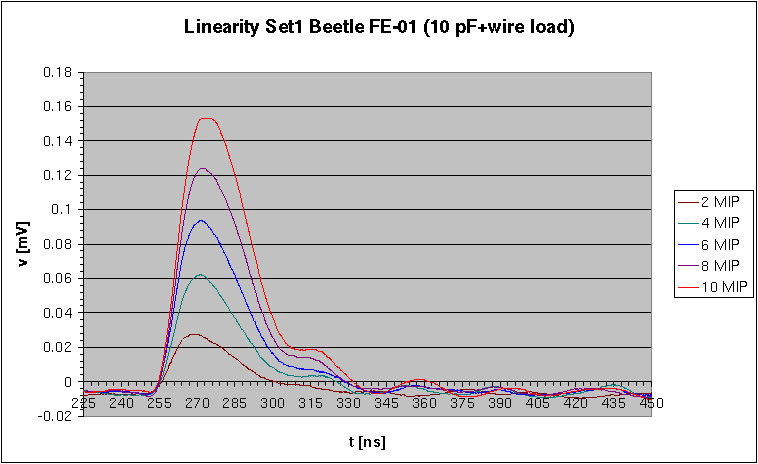

pos. Pulseshape
