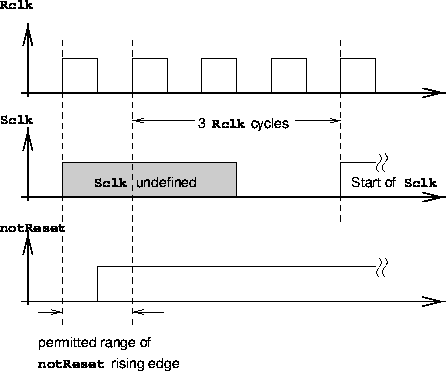

The falling edge of the sampling clock determines the sampling point of time, i. e. when the frontend outputs are sampled into the pipeline column ``on duty''. The sampling clock (nominally 10Mhz) Sclk can be either applied to the Sclk input pad or generated internally from Rclk. Therefore the lower four bits of the ClkDiv register hold the ratio of the Rclk (readout) and Sclk (sampling) clocks. Valid values are 0-15. If the content of ClkDiv = 0, the signal applied to the Sclk input pad is used for sampling. The internally generated Sclk will have its first rising edge synchronously with the fourth rising edge of Rclk following the rising edge of notReset. This behaviour is illustrated in Fig. 12. The duty cycle of the internally generated Sclk signal is 50%.
