Measurements with Beetle 1.1
28.06.2001 Beetle 1.1 is alive!
Up to now the following was tested:- The chip can be programmed via the I2C interface and the registers can be read back
- All readout modes work (PipelineColumnNumber is correctly encoded and has the right levels)
- WriteMon/TrigMon are generated and have the correct distance depending on the selected latency
- FifoFull becomes active after 16 consecutive triggers

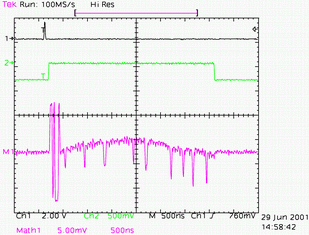

A screenshot showing a readout burst: 2 MIP signals are coupled into 11 different channels [Ch.No. 4,20,36,37,60,70,71,91,101,109,120] and read out via a single port
