Beetle 1.3 PCB
All our lab-measurements will be done with a test PCB. The PCB size is 6.4mm x 6.6mm. There are two Beetle 1.3 on each PCB.Following technical drawings are available:
- Beetle 1.2/1.3 PCB (version 03/2003)
- Beetle 1.2/1.3 PCB layout [only top-side / only bottom-side]
- pin description for 1.2/1.3 PCB

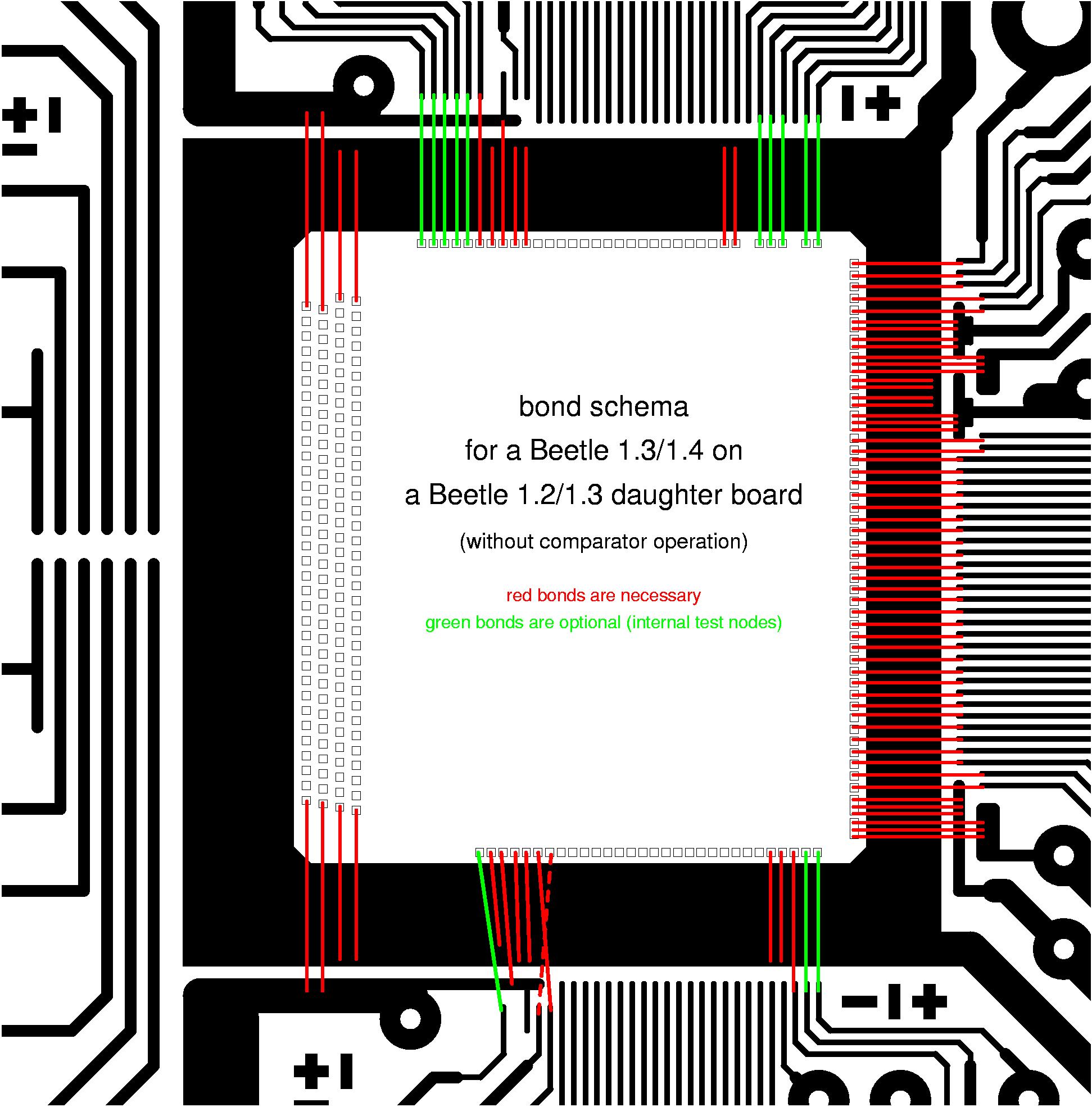

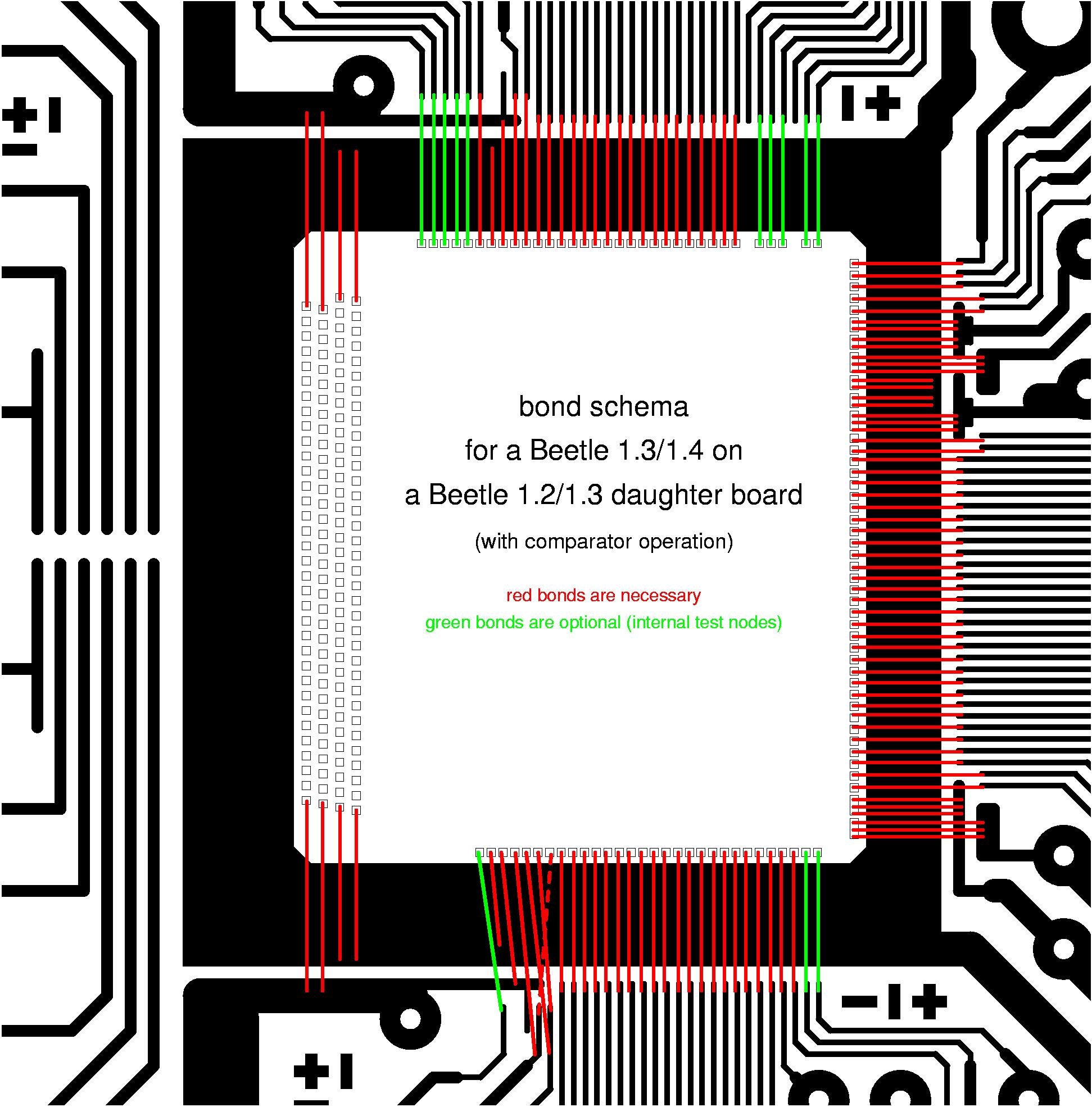

(same pin-layout as version 05/2002, but different probe points) - bondplan for a Beetle 1.3 on a 1.2/1.3 PCB
Letzte Änderung: 13 Nov 2003
