Design Analyser

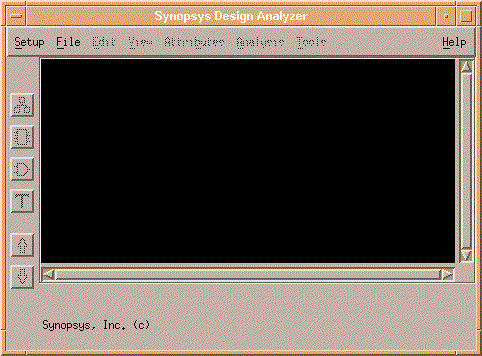

Now we can start the Synopsys Design Analyser by typing design_analyser &.

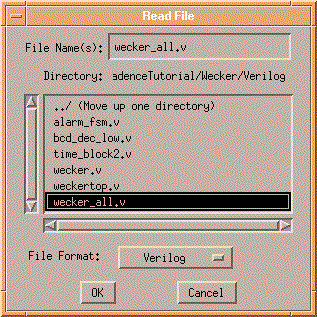

File -> Read... opens the following dialog.

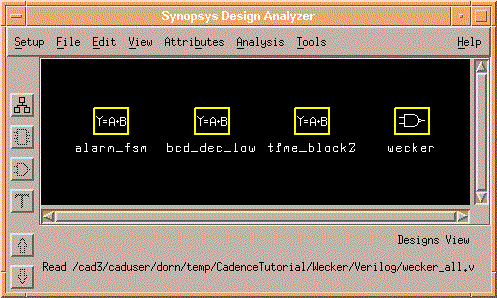

Choose the wecker_all.v and press the OK button. After a successfully design read, the Design Analyser window changes to the next picture.
