Connect power rings

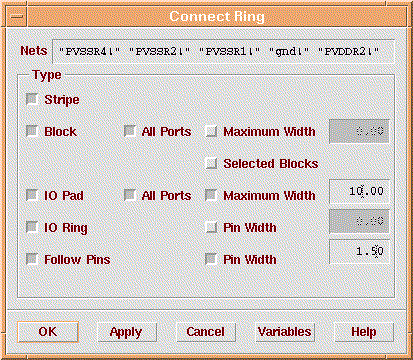

Now it is time to connect the power rings with the pads. Open Route -> Connect Ring... and set Maximun Width from IO Pad to 10.00 and Pin Width from Follow Pins to 1.50. The command takes a few minutes to run. It creates a ring inside th IO rows for IO powere, connects block pins to block rings, connects power stripes to power rings, and connects power rails in standard cell rows. If you see x-shaped markers in your design, they are info markers that mark violations. For this tutorial you can ignore them and continue on.
