Import verilog

The library data for our process can we find under /cad/libs/ams3.20/artist/HK_0.6/LEF/cup/, we need all three files. We import them with File -> Import -> LEF.... Was the import correct you see a No errors found. The database created successfully. in the protocol window. As next we read the timing information File -> Import -> Timing Library... and choose the cup5.0v.gcf file. After this we have all process specified libraries attached and so we can save the design as e.g. libs_loaded. File -> Save As... saves the design.

Import Verilog

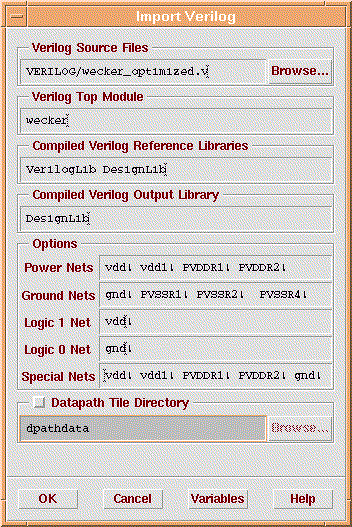

The screenshot above shows you the import verilog dialog File -> Import -> Verilog.... You only have to browse to your verilog file, insert the name of the top module and change the verilog output directory to DesignLib.
