Setting the variables

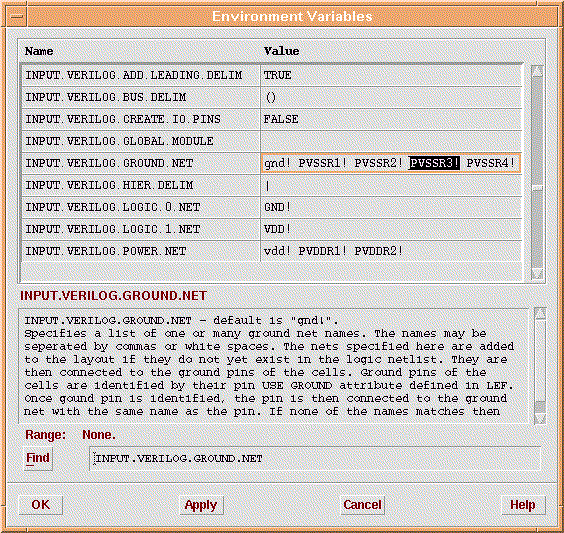

With Edit -> Environment we can add or vary some variables. Insert in the find field INPUT.VERILOG.GROUND.NET and press Find. Now we can change the value that it agree with our power_corner.def file. This means we have to delete the unwanted PVSSR3!. Do this methode also on the INPUT.VERILOG.POWER.NET and INPUT.VERILOG.SPECIAL.NETS variable. Additional change INPUT.VERILOG.LOGIC.0.NET and INPUT.VERILOG.LOGIC.1.NET the values to lowercase.

Environment Variables
